How to Design Injection Molds for Automotive Light Covers

Automotive lighting components are often described as the “eyes” of a vehicle. For engineering and purchasing teams, injection molds for automotive light covers require more than basic cavity machining. They must support tight assembly requirements, stable dimensions, reliable sealing areas, efficient cooling, and long mold life under high-volume production conditions.

This guide discusses the practical design logic behind an automotive headlamp housing mold, including part analysis, hot runner selection, side core pulling, cooling layout, guiding and positioning, ejection, venting, and mold strength. The focus is on manufacturability and production risk control rather than cosmetic marketing claims.

Why Automotive Light Cover Mold Design Is Demanding

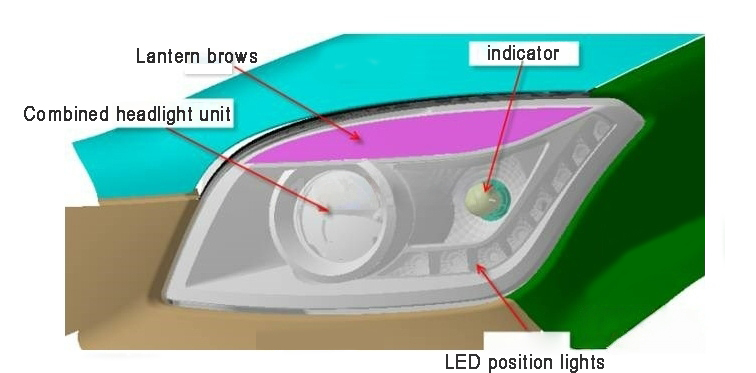

Front and rear lamps typically include lenses, decorative bezels, housings, reflectors, sealing features, and mounting structures. Some components are transparent or plated appearance parts, while others are internal functional parts. Even non-appearance parts must meet strict dimensional and assembly expectations.

For automotive lamp housings, engineering teams must pay close attention to headlamp bulb openings, rear cover openings, undercuts, ribs, bosses, sealing zones, and the risk of the part sticking to the fixed mold side after opening.

Part Requirements and Structural Analysis

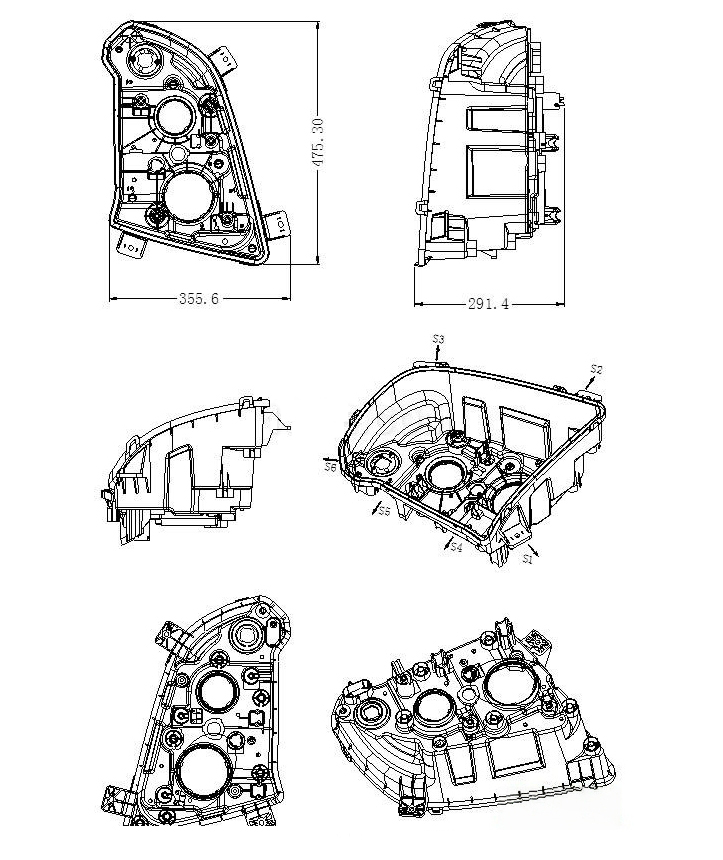

The example discussed here is an automotive headlamp housing made from PP+TD20. PP is the base resin, while TD20 indicates 20% talc filler added to improve stiffness. The part is an internal functional component rather than a primary appearance surface. Its reference size is approximately 475.3 × 355.6 × 291.4 mm.

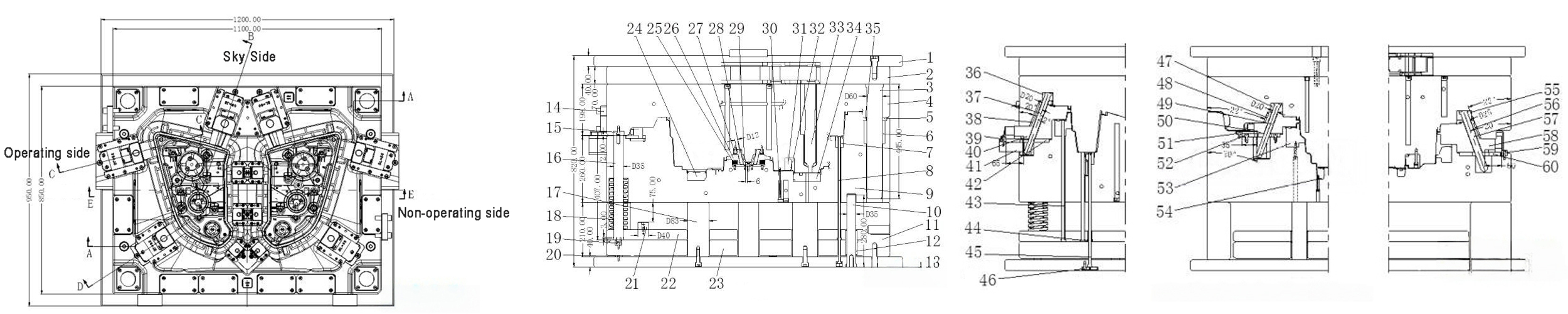

Overall Mold Structure for Automotive Light Housings

Based on part geometry and production requirements, a hot runner mold is typically preferred for this type of housing. In the referenced mold design, mold flow analysis and engineering review supported a two-point open hot runner direct gating system. Because the six undercuts are located on the outer side of the part and involve relatively large undercut areas, the mold uses moving-side slides driven by angle pins.

The mold size is approximately 1200 × 950 × 820 mm, with a total weight of about 8 tons. This places it in the category of large automotive injection molds, where strength, guiding accuracy, cooling balance, and processing efficiency must be considered together.

For projects involving similar lamp housings or functional lighting parts, DTG provides engineering support through its insert injection molding service, including DFM review, mold structure evaluation, and production-oriented tooling recommendations.

Core and Cavity Design Considerations

For large molds with complex parting surfaces, an integrated cavity plate structure can be used. In this approach, the fixed mold A plate directly forms the fixed-side molding surfaces, while the moving mold B plate forms the moving-side molding surfaces. This keeps the structure compact, improves rigidity, reduces mold volume, and avoids unnecessary frame machining and fitting work.

Material and Mold Steel Selection

Because the part material is PP+TD20 and the component is not a high-gloss external appearance part, commonly used mold steels such as P20 or 718 can be suitable, depending on the expected production volume, maintenance plan, and customer requirements.

Preventing Fixed-Side Sticking

The ejection system is located on the moving mold side, so the molded part must remain on that side after opening. For lamp housings with complex shapes, fixed-side sticking is a real production risk. Preventive measures include adding ribs or shallow retention textures on the moving-side surface corresponding to high holding-force areas. If necessary, ejector pins can also be designed with retention features to help keep the part on the moving side.

Bulb Hole Accuracy

One common error in automotive lamp housing molds is treating the left and right bulb holes as mirrored features when they are actually translated features. The bulb hole inserts must be reviewed carefully. Draft on the bulb hole should generally be controlled within a narrow range, such as within 0.5°, because excessive draft may affect the fit between the lamp holder and the housing opening.

Parting Surface Quality

The parting surface should be smooth, continuous, and free from thin steel, sharp points, line sealing, or point sealing. For automotive lamp molds, the parting surface quality directly affects CNC accuracy and flash control. Where possible, the parting surface should be constructed using extended, swept, or mesh surfaces that follow the part geometry without wrinkling or fragmented small patches.

Hot Runner and Gating System Design

For this type of functional housing, direct gating through a two-point open hot runner can provide faster melt flow, shorter cycle time, and stable filling. Since the housing is not a primary appearance part, gate marks on selected surfaces may be acceptable if they do not interfere with assembly or sealing.

For customers comparing Automotive light cover mold manufacturers in China, hot runner design should not be evaluated only by the number of gates. The more important questions are whether the flow path supports balanced filling, whether the hot nozzle area is properly cooled, and whether gate location avoids functional interference.

Side Core Pulling for Multiple Undercuts

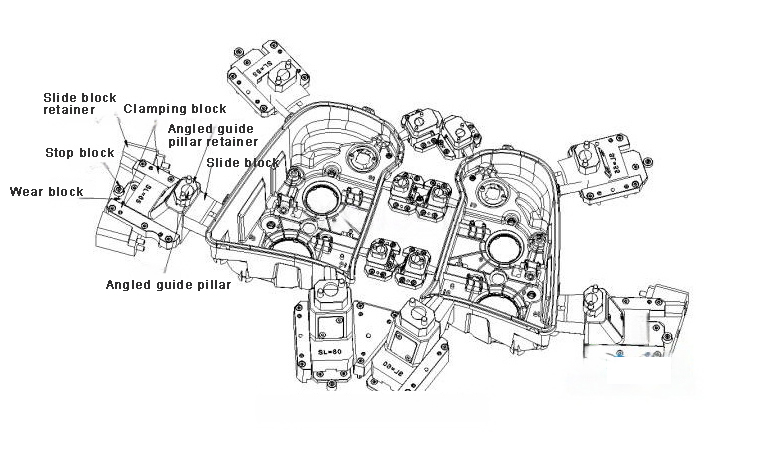

The example part includes six side undercuts, each requiring a side core pulling mechanism. A practical solution is a moving-side slide with angle pin drive and positioning clips. This structure is relatively simple to machine, stable in movement, and suitable for automotive production environments.

Slide Design Priorities

• Use mechanical drive where possible because it is stable and cost-efficient.
• Prioritize left and right slides before top or bottom slide arrangements.
• Use conventional slides before inclined slides when the part design allows.
• Avoid compound core-pulling directions that increase machining difficulty and collision risk.
• Design the slide so the part does not stick to the slide during mold opening.

For lamp housings, simplifying the slide direction during part layout can reduce machining risk and improve mold reliability. When possible, product and mold engineering teams should review undercut locations before finalizing the part structure.

Need DFM Input Before Finalizing a Lamp Housing?

For automotive lighting components, early review of gate location, slide direction, sealing zones, rib layout, and draft can prevent costly mold changes later.

Cooling System Design for Cycle Time and Dimensional Stability

Automotive headlamp housings require dimensional stability, especially around assembly holes and sealing areas. Cooling must be uniform and efficient. Water channels should maintain a reasonably consistent distance from the cavity surface so that cavity temperature remains balanced across the part.

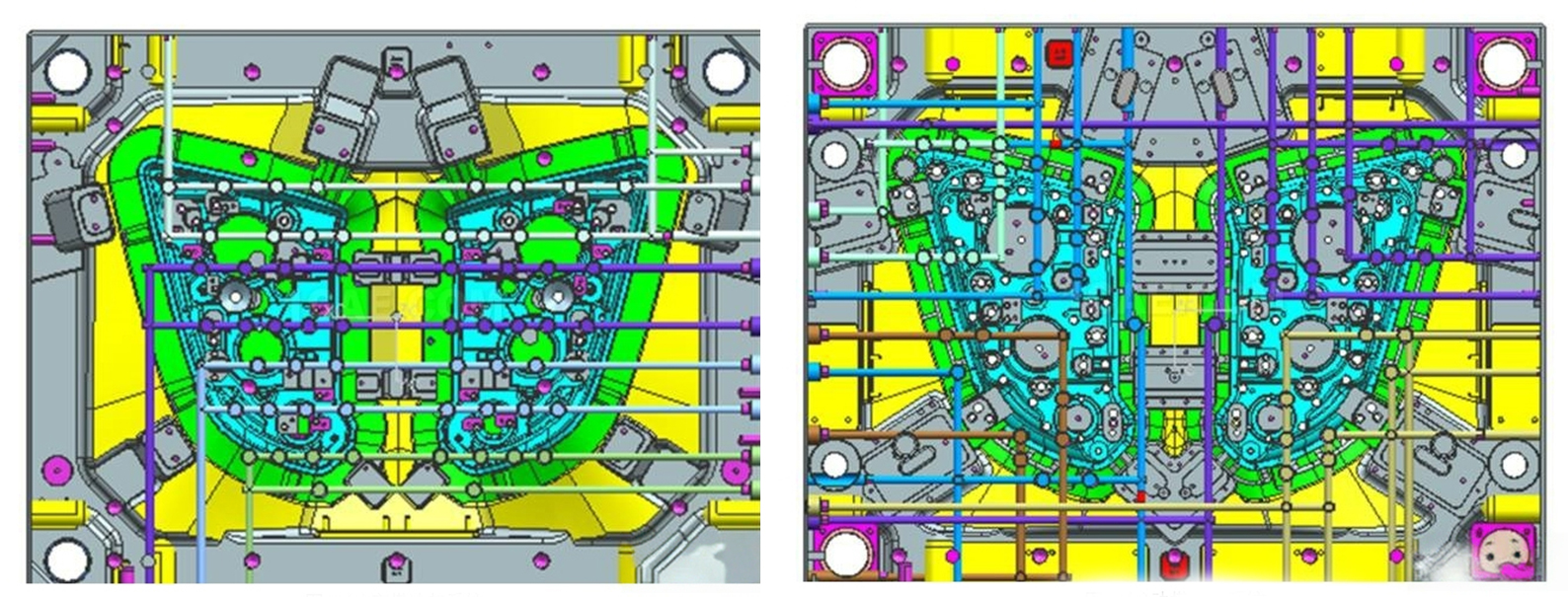

Because lamp housings often have large height differences and complex geometry, a combined cooling strategy may be required. In the referenced mold, a combination of vertical cooling pipes and baffle-type cooling wells was used. The fixed mold used four cooling circuits, while the moving mold used five cooling circuits. With sufficient and balanced cooling, the cycle time was controlled at around 40 seconds.

Guiding and Positioning System

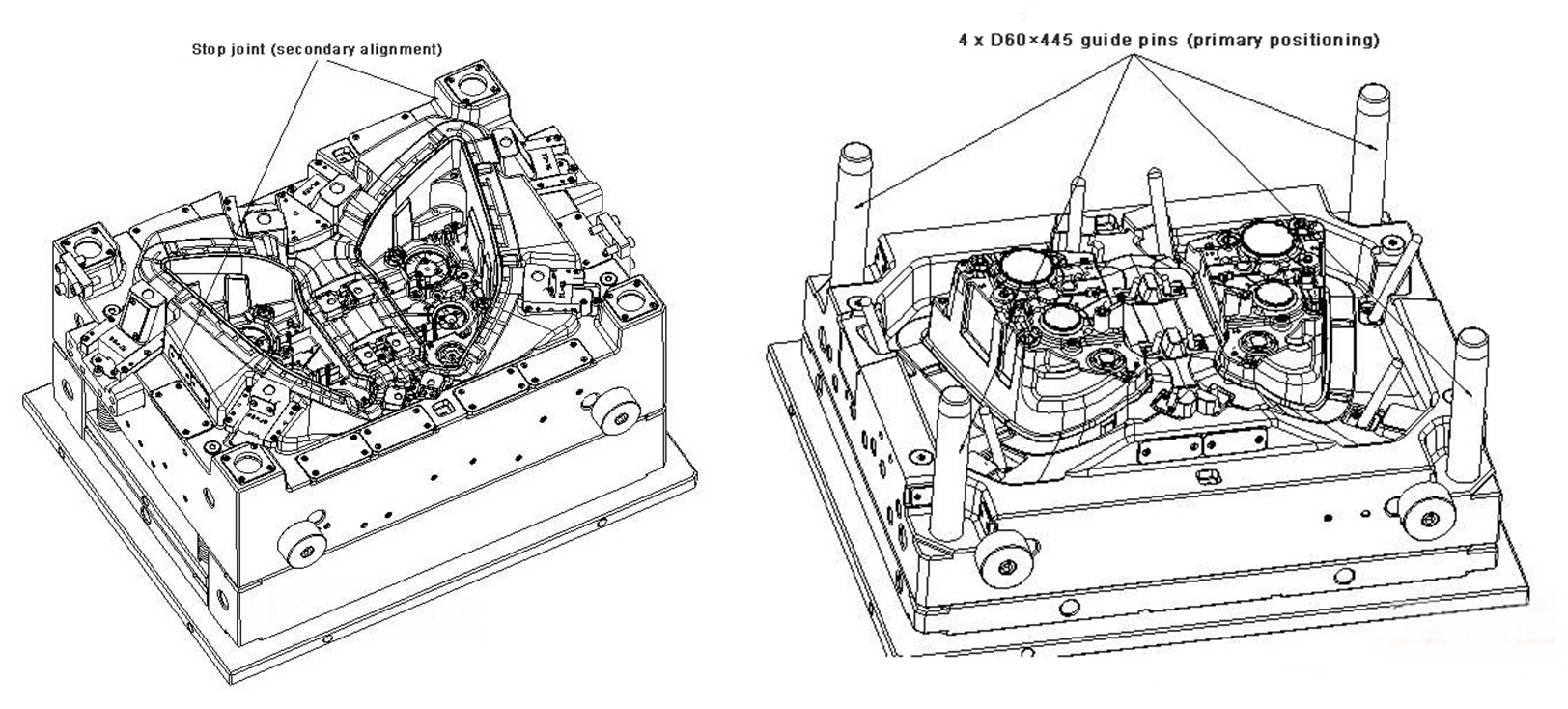

Large automotive injection molds require reliable guiding and positioning to avoid mismatch, flash, movement instability, and damage to shut-off surfaces. A three-level positioning strategy is often used for demanding automotive parts.

First-Level Positioning: Guide Pins and Bushings

Guide pins provide primary alignment and support mold weight. In the referenced mold, four D60 × 445 round guide pins were used. The guide pins were installed on the fixed mold side so that they would not interfere with part removal from the moving side. As a general design reference, guide pin length should not exceed about ten times its diameter.

Second-Level Positioning: Interlocking Mold Base Features

Four-sided interlocking features and wear blocks improve positioning accuracy beyond guide pins alone. For automotive molds, this is especially important near shut-off surfaces where wear can quickly lead to flash.

Third-Level Positioning: Core Insert Locks

Core insert locks protect precise shut-off surfaces and resist lateral injection pressure. They should be designed as interlocking features rather than all in one direction. For high-precision automotive molds, machining accuracy should be used to ensure fit as much as possible, rather than relying heavily on manual fitting.

Ejection System Design

The referenced mold uses an ejector pin, ejector sleeve, spring, and return system. After mold opening and side core pulling, the ejector system pushes the part away from the moving mold. The ejector plate is driven through the machine’s knockout system and reset by return pins.

For automotive lamp housings, ejector placement should be reviewed carefully. Areas around rear cover holes and turn signal bulb holes may require sealing rings during final assembly. Ejector pins should not be placed in these sealing-critical regions, because pin marks or local deformation may affect sealing reliability.

Mold Base Strength and Support Components

Large molds must maintain strength without unnecessary bulk. The design goal is not simply to make the mold heavier, but to provide enough stiffness at injection-pressure zones, slide areas, hollowed regions, and parting surfaces.

• Support pillars should be placed near high-pressure areas, gate projection areas, and weaker hollowed sections.
• Support pillar area should be considered relative to ejector plate area to reduce plate deformation.
• Limit pillars and stopper posts should be placed near knockout holes or cylinder-driven areas.
• Wear blocks and pressure blocks should be designed with adequate edge distance to avoid local weakness.
• Return pin areas should include suitable support and debris clearance design.

For applications involving metal inserts or hybrid assembly features, DTG also supports metal insert molding for projects where retention force, dimensional stability, and assembly consistency are critical.

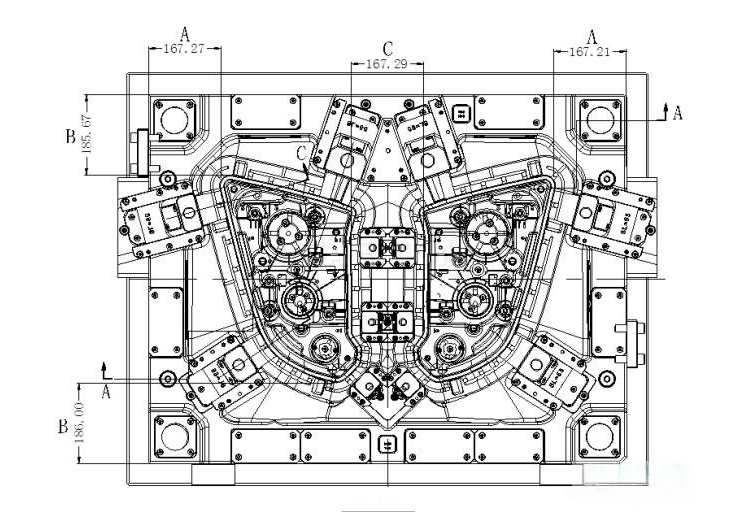

Parting Line, Shut-Off Angle, and Venting

For automotive molds, shut-off angles should be designed as large as practical. A shut-off angle of 7° or more is preferred where the part geometry allows. If geometry is limited, the angle should still be kept as large as possible. Small shut-off angles increase wear risk, reduce mold life, and make flash more likely.

The parting line layout should include sealing land, clearance, pressure blocks, and venting. For many automotive mold designs, the sealing land width may be selected based on mold size, while surrounding non-sealing areas are relieved to reduce fitting workload and machining time.

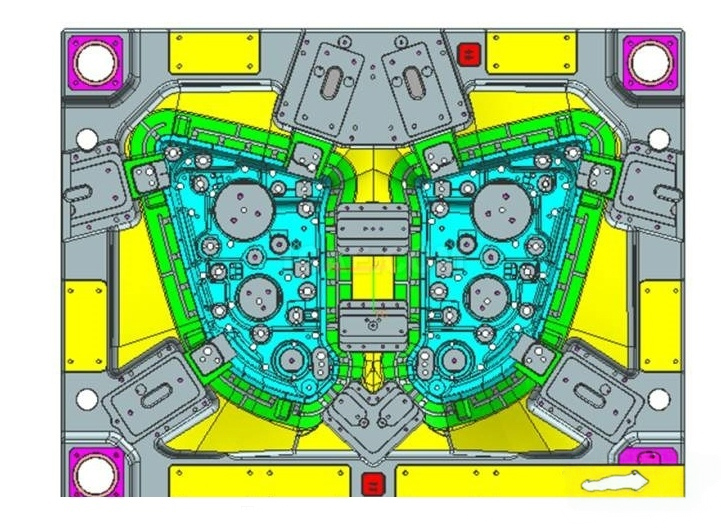

Venting is especially important in large automotive molds. Poor venting can cause short shots, trapped gas, difficult demolding, weld-line problems, or burn marks at the parting line. For lamp housings, vents are commonly placed at melt-flow ends, corners, near inserts, or at thin-wall areas where weld lines may form.

Mold Operation Sequence

During production, molten plastic enters the mold cavity through the injection machine nozzle and hot runner system. After filling, packing, cooling, and solidification, the injection machine pulls the moving mold platen to open the mold at the parting line. Once the mold opens sufficiently, the side slides retract under angle pin drive and release the undercut areas.

The machine then actuates the ejector system. After the ejector stroke separates the part from the moving mold, a robot can remove the molded housing. The ejector system returns, the mold closes, and the next injection cycle begins. A stable sequence depends on correct slide timing, accurate guide pin engagement, reliable ejector reset, and proper mold protection design.

Common Risk: Fixed-Side Sticking in Lamp Housing Molds

Lamp housing parts can easily stick to the fixed mold side, particularly when the fixed-side holding force is high or draft is insufficient. This issue should be addressed during mold design rather than after the first trial.

In the referenced design, high holding-force areas had sufficient draft and a 0.5 mm deep retention texture on the moving side. As a result, ejection was smooth, mechanism movement was stable, and the fixed-side sticking issue was avoided.
