Whit is Metal Injection Molding (MIM) – Comprehensive Overview

What is Metal Injection Molding?

Metal Injection Molding (MIM) is a manufacturing process that involves the production of complex metal parts through prototype injection molding. It enables the cost-effective production of intricate metal components with tight tolerances and excellent surface finishes.

What are MIM Parts?

MIM parts are metal components manufactured using the metal injection molding process. These parts can vary in size, complexity, and material composition, making them suitable for a wide range of applications across industries such as automotive, aerospace, electronics, and medical.

Metal Injection Molding Process

The MIM process involves several steps, including the preparation of metal powders, mixing with binders to form a feedstock, injection molding of parts, debinding to remove binders, and sintering to achieve final density and properties.

1. Feedstock Preparation:

  • The MIM process begins with the preparation of feedstock, which consists of fine metal powders mixed with a thermoplastic binder material.
  • The metal powders are typically spherical in shape and have a controlled particle size distribution to ensure uniform properties in the final part.
  • The binder material serves to hold the metal powders together and provide formability during molding.

2. Mixing:

  • The metal powders and binder material are mixed together in precise proportions to form a homogeneous feedstock.
  • Mixing is typically performed in specialized equipment, such as twin-screw extruders or intensive mixers, to ensure thorough dispersion of the metal powders within the binder matrix.

3. Injection Molding:

  • The mixed feedstock is then injected into a mold cavity under high pressure using an injection molding machine.
  • The mold is typically made from tool steel and is designed to replicate the desired shape and features of the final part.
  • During injection molding, the feedstock fills the mold cavity and takes on its shape. The high pressure helps to achieve intricate details and fine features in the molded part.

4. Debinding:

  • After molding, the green parts are removed from the mold and undergo a debinding process to remove the binder material.
  • Debinding is typically carried out in two stages: solvent debinding and thermal debinding. Solvent debinding involves immersing the green parts in a solvent to dissolve the binder material, while thermal debinding involves heating the parts in a controlled atmosphere to evaporate the binder.

5. Sintering:

  • Once debinding is complete, the green parts are subjected to a sintering process to consolidate the metal powders and achieve the final density and properties.
  • Sintering involves heating the parts to temperatures just below the melting point of the metal powders in a controlled atmosphere, allowing them to bond together through diffusion processes.
  • The sintered parts undergo shrinkage during this process, resulting in a slight reduction in size compared to the molded green parts.

6. Finishing Operations:

  • After sintering, the parts may undergo additional finishing operations such as machining, polishing, or surface treatment to achieve the desired final dimensions, surface finish, and properties.
  • Finishing operations help to remove any remaining imperfections, improve dimensional accuracy, and enhance the aesthetic appearance of the parts.

7. Inspection and Quality Control:

  • Finally, the finished parts undergo inspection and quality control measures to ensure they meet the specified tolerances, dimensions, and material properties.
  • Various techniques such as dimensional measurement, metallurgical analysis, and mechanical testing may be employed to verify the quality and performance of the parts.

Overall, the Metal Injection Molding process offers a cost-effective and efficient means of producing high-quality metal parts with complex geometries and tight tolerances, making it well-suited for a wide range of applications across industries such as automotive, aerospace, medical, and consumer electronics.

Metal Injection Molding Material Properties

MIM materials exhibit properties similar to conventionally processed metals, including high strength, hardness, corrosion resistance, and thermal conductivity. Common materials used in MIM include stainless steel, titanium, aluminum, and cobalt-chrome alloys.

Metal Injection Molding Advantages and Disadvantages

Advantages of MIM include the ability to produce complex shapes, high precision, near-net-shape manufacturing, and material savings. However, challenges such as higher initial tooling costs, limited material options, and longer lead times may be encountered.

Advantages:

  1. Complex Geometries: MIM allows for the production of intricate and complex shapes that are difficult or impossible to achieve using traditional manufacturing methods. This capability enables the design and fabrication of highly sophisticated parts with tight tolerances and fine features.
  2. High Precision: MIM offers excellent dimensional accuracy and repeatability, allowing for the production of parts with tight tolerances and consistent quality. This precision is critical for applications where parts must fit together seamlessly or meet strict performance requirements.
  3. Material Diversity: MIM can process a wide range of metal materials, including stainless steel, titanium, aluminum, cobalt-chrome alloys, and more. This versatility allows manufacturers to select the most suitable material for their specific application requirements, balancing factors such as strength, corrosion resistance, and biocompatibility.
  4. Near-Net Shape Manufacturing: MIM produces parts that are near-net shape, meaning they require minimal additional machining or finishing. This reduces material waste, machining time, and overall production costs, making MIM a cost-effective manufacturing solution for complex components.
  5. Cost Efficiency: Despite higher initial tooling costs, MIM offers significant cost savings over traditional manufacturing methods for high-volume production runs. The ability to produce multiple parts in a single cycle, coupled with reduced material waste and labor costs, contributes to overall cost efficiency.
  6. Design Flexibility: MIM enables designers to incorporate features such as undercuts, thin walls, and complex internal structures into their designs without the need for additional assembly or joining processes. This design flexibility allows for innovative product designs and enhanced functionality.

Disadvantages:

  1. High Initial Tooling Costs: The tooling costs for MIM can be significant, especially for complex parts with intricate geometries. This upfront investment may pose a barrier to entry for small-scale or prototype production runs.
  2. Limited Material Options: Although MIM can process a wide range of metal materials, certain exotic alloys or materials with unique properties may be challenging to work with or may not be suitable for the MIM process. This limitation may restrict material selection for specific applications.
  3. Longer Lead Times: The MIM process typically involves multiple stages, including feedstock preparation, injection molding, debinding, and sintering, each of which requires time to complete. As a result, MIM production cycles may be longer compared to other manufacturing methods, impacting overall lead times.
  4. Part Size Limitations: MIM is best suited for producing small to medium-sized parts with complex geometries. Large parts or components with thick cross-sections may be difficult to mold or sinter uniformly, limiting the size range of parts that can be produced using MIM.
  5. Complex Process Control: Achieving consistent quality and properties in MIM parts requires precise control over various process parameters, including powder feedstock composition, binder formulation, injection molding conditions, debinding, and sintering parameters. Managing these variables can be challenging and may require specialized expertise and equipment.
  6. Environmental Considerations: The MIM process involves the use of binders and chemicals, as well as high-temperature sintering operations, which may raise environmental concerns related to emissions, waste disposal, and energy consumption. Implementing sustainable practices and adhering to regulatory requirements is essential to mitigate environmental impacts.

While Metal Injection Molding (MIM) offers numerous advantages such as complex geometries, high precision, and cost efficiency, it also presents challenges such as high initial tooling costs, limited material options, and longer lead times. By carefully evaluating the advantages and disadvantages of MIM in the context of specific application requirements and production goals, manufacturers can determine whether MIM is the right manufacturing solution for their needs.

Metal Injection Molding Applications

MIM finds applications in various industries, including automotive (for engine components and sensors), medical (for surgical instruments and implants), aerospace (for aircraft components), electronics (for connectors and housings), and consumer goods (for watch parts and jewelry).

3D Printed Metal Injection Mold

The integration of 3D printing technologies with MIM allows for the rapid prototyping and production of metal injection industrial molds, enabling faster iteration and customization of MIM parts.

Die Casting vs. Metal Injection Molding

While die casting and MIM both offer cost-effective solutions for metal part production, they differ in terms of tooling complexity, part complexity, material options, and production volume suitability.

Injection Molding Metal Types

Various metal injection molding processes exist, including APG metal injection molding, amorphous metal injection molding, liquid metal injection molding, and injection molding of metals and ceramics, each offering unique advantages and applications.

APG Metal Injection Molding

APG (Aqueous Polymeric Gel) metal injection molding is a variation of the conventional metal injection molding process that involves the use of a water-based binder system. This environmentally friendly approach offers advantages such as reduced environmental impact, improved safety, and enhanced green credentials.

Amorphous Metal Injection Molding

Amorphous metal injection molding (AMIM) is a specialized form of metal injection molding used to produce parts made from amorphous metal alloys. These alloys lack a crystalline structure, resulting in unique properties such as high strength, hardness, and corrosion resistance. AMIM enables the production of complex-shaped parts with precise dimensions and excellent surface finishes.

Liquid Metal Injection Molding

Liquid metal injection molding (LMIM) is a process that involves injecting molten metal alloys into a mold cavity under high pressure. This technique allows for the production of intricate metal parts with tight tolerances and complex geometries. LMIM is commonly used in industries such as automotive, aerospace, and electronics for manufacturing components such as heat sinks, connectors, and housings.

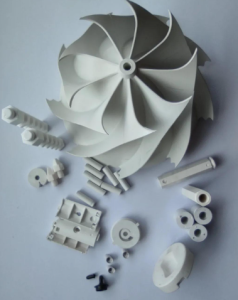

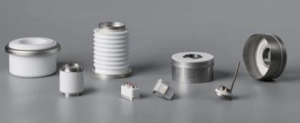

Injection Molding of Metals and Ceramics

Injection molding of metals and ceramics (MIM-CIM) combines metal injection molding (MIM) and ceramic injection molding (CIM) techniques to produce parts made from a combination of metal and ceramic materials. This process enables the fabrication of components with unique properties, such as high strength, wear resistance, and thermal conductivity, making it suitable for applications in harsh environments.

Metal and Ceramic Injection Molding Market

The metal and ceramic injection molding market is experiencing significant growth due to increasing demand for complex-shaped components in industries such as automotive, aerospace, healthcare, and electronics. Key market drivers include advancements in material technology, growing adoption of additive manufacturing techniques, and rising demand for lightweight, high-performance parts.

Injection Molding with Metal Inserts

Injection molding with metal inserts involves the integration of metal components, such as screws, pins, or inserts, into plastic parts during the molding process. This technique allows for the creation of composite parts with enhanced mechanical properties, improved dimensional stability, and increased functionality. Injection molding with metal inserts is commonly used in industries such as automotive, consumer electronics, and medical devices.

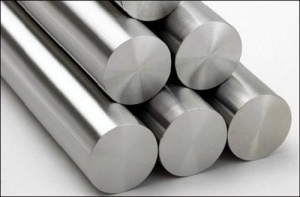

Metal Injection Molding Aluminum

Metal injection molding (MIM) of aluminum alloys enables the production of lightweight, high-strength components with complex geometries and excellent surface finishes. Aluminum MIM parts find applications in various industries, including automotive, aerospace, consumer goods, and electronics, where weight reduction and performance are critical factors.

Titanium Metal Injection Molding

Titanium metal injection molding (TiMIM) is a specialized process used to produce titanium components with complex shapes and intricate details. TiMIM offers advantages such as reduced material waste, improved design flexibility, and cost-effective production of small to medium-sized titanium parts. TiMIM parts find applications in aerospace, medical, and defense industries, where corrosion resistance, biocompatibility, and high strength-to-weight ratio are essential.

Metal Injection Molding Association

The Metal Injection Molding Association (MIMA) is a global trade association dedicated to promoting the advancement and growth of the metal injection molding industry. MIMA provides resources, networking opportunities, and industry insights to its members, including MIM manufacturers, suppliers, researchers, and end-users. MIMA plays a vital role in fostering collaboration, innovation, and best practices within the metal injection molding community.

Metal Injection Molding Temperature

Control of temperature during the MIM process is critical for achieving proper flow, mold filling, and part quality. Parameters such as injection temperature, mold temperature, and debinding/sintering temperature profiles must be carefully controlled.

Metal Injection Molding Feedstock

Metal powders are the primary constituents of MIM feedstock and constitute the bulk of its composition. These powders are finely ground particles of metals or metal alloys with controlled particle size distributions.

Common metal powders used in MIM feedstock include:

  • Stainless steel (e.g., 316L, 17-4 PH)
  • Titanium and titanium alloys
  • Aluminum and aluminum alloys
  • Cobalt-chrome alloys
  • Nickel-based alloys (e.g., Inconel, Hastelloy)
  • Tungsten alloys
  • Copper and copper alloys
  • Tool steels (e.g., H13, M2)
  • Magnetic alloys (e.g., Fe-Ni, Fe-Co)

Metal Injection Molded Products

A wide range of products can be produced using MIM, including small, intricate components with thin walls, complex geometries, and fine details.

Metal Injection Molding Cost

The cost of metal injection molding depends on factors such as part complexity, material selection, production volume, tooling costs, and post-processing requirements. While MIM may involve higher upfront costs compared to traditional manufacturing methods, it offers significant cost savings for complex, high-volume production runs.

In conclusion, Metal Injection Molding (MIM) is a versatile manufacturing process with wide-ranging applications across industries. By understanding the intricacies of the MIM process, materials, advantages, and applications, manufacturers can leverage this technology to produce high-quality, complex metal parts efficiently and cost-effectively.
