Injection molding is a manufacturing process used to produce plastic parts in large volumes. It involves injecting molten material, typically thermoplastic or thermosetting polymers, into a mold cavity. Once the material solidifies, the mold is opened, and the finished part is ejected.
History and Development of Injection Molding
The history of Injection Molding dates back to the 19th century. Initially, hand-operated syringes were used to inject thermoplastic materials into molds, which were then manually pressurized to form products. However, with industrialization, injection molding technology developed rapidly.
At the beginning of the 20th century, the first manually operated injection molding machine appeared, which did not attract widespread attention due to low productivity and high cost.
1946 – American inventor James Watson (James Watson) invented the first fully automatic injection molding machine, marking the injection molding technology into the industrial production stage.
1950 – the first CNC injection molding machine.
1960 – the beginning of the injection molding machine.
1980 – the emergence of multi-color injection molding technology.
1990 – the beginning of the application of electrical injection molding machines and other advanced technologies.
Nowadays, injection molding has become one of the most common and important plastic molding processes in industrial manufacturing, and is widely used in various fields such as automotive, electronics, medical and household.
Importance of Injection Molding in Industrial Manufacturing
- Efficient Production: Injection molding is an efficient mass production process that can produce large quantities of plastic products in a short period of time to meet market demand.
- Accurate Reproduction: Injection molding can accurately reproduce the details of the mold, producing products with a high degree of consistency and precision, ensuring consistent product quality.
- Design Flexibility: Injection molding can produce products of various shapes and sizes with high design flexibility to meet the different needs of customers.
- Cost-effectiveness: injection molding production process is simple, high degree of automation, compared with other molding processes, can reduce production costs and improve production efficiency.
- Wide choice of materials: Injection molding is suitable for all types of plastic materials, including thermoplastics and thermosets, as well as a variety of colors and additives to meet different product requirements.
- Waste Reduction: The injection molding process can control the amount of material used, reduce waste and energy consumption, in line with environmental requirements.
Basic Principles of Injection Molding
The basic principle of Injection Molding is to inject heated melted plastic into a mold, where it is cooled and solidified to form the desired plastic product. This process is capable of producing high-precision, high-quality, and high-volume plastic products, and is widely used in various fields of industrial manufacturing.
Injection Molding Category
Injection molding is a versatile manufacturing process that is categorized by material type, including thermoplastic injection molding (which uses materials that can be repeatedly melted and cured); and thermoset injection molding (in which the material undergoes irreversible chemical changes when heated). Simple injection molding is used for basic geometric shapes, and complex injection molding is used for intricate designs and features.
Plastic injection molding
Plastic injection molding is a manufacturing process used to produce a wide range of plastic parts and products. It involves injecting molten plastic material into a mold cavity, where it cools and solidifies to form the desired shape. Plastic injection molding is a versatile and efficient method for mass-producing high-quality plastic parts with intricate designs and precise dimensions.
Plastic injection molding offers several advantages, including:
High efficiency and repeatability: Injection molding allows for high-volume production of consistent and uniform parts with minimal variation.
Wide range of materials: A variety of thermoplastic and thermosetting materials can be used in injection molding, offering versatility in material properties and applications.
Complex part geometries: Injection molding can produce parts with intricate designs, undercuts, and fine details that would be difficult or impossible to achieve with other manufacturing processes.
Cost-effectiveness: Injection molding is often cost-effective for large production runs, as the cost per part decreases with increasing volume.
Minimal waste: The injection molding process generates minimal scrap material, as excess plastic can often be recycled and reused.
Metal injection molding

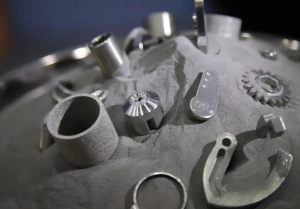

Metal injection molding (MIM) is a manufacturing process used to produce complex metal parts with high precision and dimensional accuracy. It combines the benefits of plastic injection molding with the strength and properties of metal materials. Metal injection molding is particularly well-suited for producing small, intricate parts with complex geometries that would be difficult or impossible to manufacture using traditional metalworking methods.
The metal injection molding process typically involves the following steps:
Feedstock Preparation: Metal powders, typically fine particles of metals or metal alloys, are mixed with a binder material to create a feedstock. The feedstock mixture is carefully controlled to achieve the desired composition and flow properties.
Injection Molding: The feedstock is injected into a mold cavity under high pressure, similar to plastic injection molding. The mold cavity is typically made of tool steel and is precision-machined to the desired shape of the final part.
Debinding: After the mold is filled, the injected parts are removed from the mold and undergo a debinding process to remove the binder material. This is typically done through thermal or solvent debinding methods, which dissolve or evaporate the binder, leaving behind a porous green part.
Sintering: The debound green parts are then sintered in a furnace at high temperatures under controlled atmospheres. During sintering, the metal particles are fused together, resulting in densification and the elimination of porosity. The sintered parts undergo significant shrinkage and densification, achieving their final dimensions and mechanical properties.
Finishing Operations: After sintering, the parts may undergo additional finishing operations such as machining, grinding, polishing, or surface treatment to achieve the desired surface finish, tolerances, and functional characteristics.
Metal injection molding offers several advantages, including:
High precision and dimensional accuracy: Metal injection molding can produce parts with complex geometries and tight tolerances, often with minimal secondary machining required.
Cost-effectiveness: Metal injection molding can be more cost-effective than traditional metalworking methods for producing small to medium-sized batches of complex parts.
Material versatility: A wide range of metal alloys can be used in metal injection molding, including stainless steel, titanium, copper, aluminum, and more, offering versatility in material properties and applications.
Design flexibility: Metal injection molding allows for the production of parts with intricate features, undercuts, and fine details that would be challenging or impossible to achieve with conventional metalworking processes.
Overall, metal injection molding is a highly versatile and efficient manufacturing process used in various industries, including automotive, aerospace, medical devices, electronics, and more, to produce high-quality metal parts with complex geometries and excellent mechanical properties.

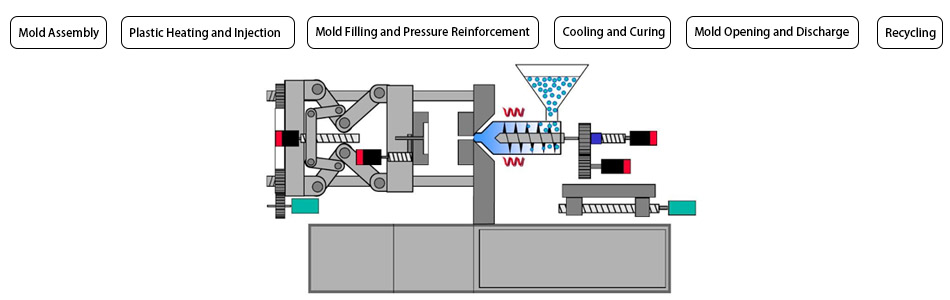

Injection Molding Steps
- Mold Assembly: First, a mold made of metal (usually in two parts) is mounted onto the injection molding machine. The mold should be designed to meet the requirements of the final product, including shape, size and surface details.
- Plastic Heating and Injection: The plastic raw material is loaded into the hopper of the injection molding machine in the form of pellets or granules, and then the pellets are heated to melting temperature by a heating system. Once the plastic reaches a suitable flow state, the injection system of the injection molding machine injects the melted plastic into the cavities of the mold.
- Mold Filling and Pressure Reinforcement: Once injected into the mold, the plastic begins to fill the cavity of the mold and is subjected to high pressure reinforcement to ensure complete filling and compaction of the plastic. This step ensures the density and quality of the final product.
- Cooling and Curing: The plastic is cooled and cured in the mold until it completely hardens into the shape of the final product. The cooling time depends on factors such as the type of plastic used and the thickness of the product.
- Mold Opening and Discharge: After cooling is complete, the mold is opened and the molded plastic product is discharged from the mold. At this point, the molded part may require further processing such as trimming, deburring, etc.
- Recycling: After molding, the injection molding machine can start a new round of molding process again, forming a continuous production cycle.

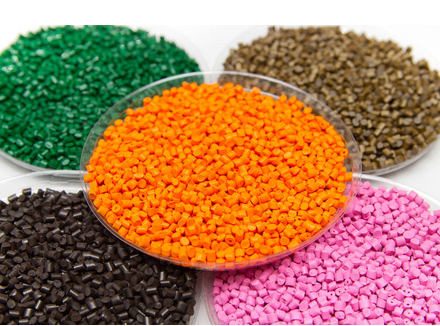

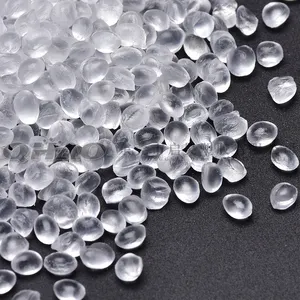

Injection Molding Common Materials
Polypropylene, PP: PP has good heat resistance, chemical stability and mechanical properties, widely used in the production of containers, pipelines, automobile parts and so on.
Polyethylene, PE: PE has good corrosion resistance and electrical insulation properties, suitable for the production of packaging film, containers, pipelines, etc..
Polystyrene, PS: PS has good transparency and processing performance, commonly used in the production of transparent packaging boxes, tableware, toys and so on.
Polymethyl Methacrylate, PMMA: PMMA has good transparency and weather resistance, commonly used in the production of automobile lampshades, billboards, glasses, etc..
Polycarbonate, PC: PC has excellent impact resistance and transparency, and is widely used for making safety glasses, bottles, cell phone cases, and so on.
Polyamide, PA: PA has good heat resistance and abrasion resistance, and is commonly used in making mechanical parts, gears, bearings, etc.
Polyethylene Terephthalate, PET: PET has good transparency and mechanical properties, suitable for making bottles, fibers, food packaging, etc.
Polyphenylene Ether, PPE: PPE has excellent heat and chemical resistance and is commonly used for electronic parts, automotive components, etc.
Polyether Ether Ketone, PEEK: PEEK has excellent heat resistance and chemical stability, and is used for aerospace parts, medical devices, etc.
Acrylonitrile Butadiene Styrene, ABS: ABS has good mechanical properties and surface luster, and is commonly used for appliance housings and toys.

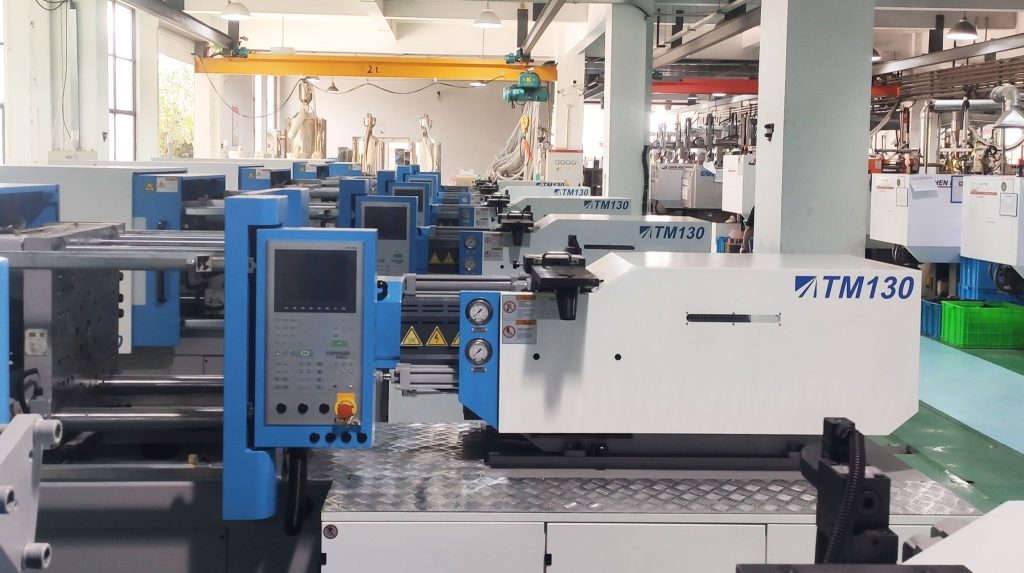

Injection Molding Equipment
It is characterized by high degree of automation, high production efficiency, stable product quality, etc. It is widely used in the manufacture of various plastic products.
It consists of several main components:
- Injection Molding Machine: The injection molding machine is the core equipment of the whole injection molding process. It includes an injection system, a pressure system, a heating system and a cooling system. The size and specification of the injection molding machine are different, according to the production demand can choose different models of injection molding machine.

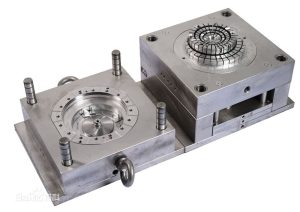

- Mold: Mold is a key component of injection molding, made of metal and usually consists of two parts: injection mold and injection mold. The design and manufacture of molds have an important impact on product quality and production efficiency.
- Heating System: The heating system is used to heat the plastic material and melt it into an injectable state. Commonly used heating methods include electric heating and heating tubes.
- Injection System: The injection system injects the melted plastic from the hopper into the cavity of the mold. It consists of an injection cylinder, an injection piston and a screw.
- Pressure System: The pressure system is used to apply high pressure as the plastic fills the mold to ensure that the plastic fully fills each part of the mold and to ensure the density and quality of the product.
- Cooling System: A cooling system is used to quickly cool and cure the molded part after the plastic has been filled. Typical cooling methods used include chilled water circulation and fan cooling.
- Control System: The control system is used to monitor and control the entire injection molding process, including the regulation and control of temperature, pressure, speed and other parameters.

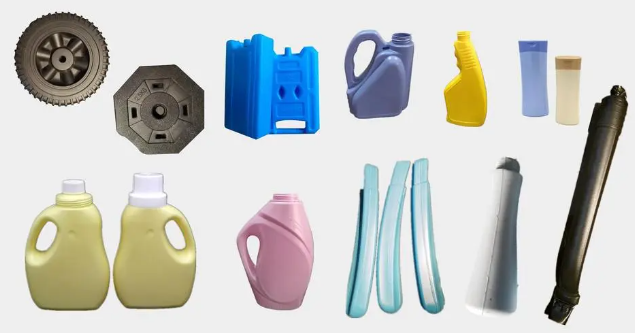

Application Areas for Injection Molding
Injection Molding is a common manufacturing process used in many different applications. It can be found in almost any field that requires the mass production of plastic parts.
Below are some of the major application areas of Injection Molding:
Automotive Industry: The automotive industry is one of the main application areas for Injection Molding. From body shells to interior components, Injection Molding technology is used to produce body panels, instrument panels, door panels, seats and other components.
Electronics and Electrical Appliances: Injection Molding is used to produce housings and components for a wide range of electronic and electrical products, such as cell phone cases, TV cases, power adapter housings, and more.
Medical Devices: The medical industry uses Injection Molding to produce various components for medical devices and instruments, including syringes, infusion sets, handles for surgical instruments, etc.
Household Consumer Goods: Injection Molding is used to produce a variety of household consumer goods, such as plastic cups, tableware, toys, furniture accessories, etc.
Packaging Industry: Many packaging products, such as plastic bottles, caps, food containers, etc., are produced by Injection Molding.
Construction and Building Materials: In the construction industry, Injection Molding is used to produce building materials such as plastic door and window frames, drainage system parts, etc.
Aerospace: In the aerospace industry, Injection Molding is used to produce various parts for airplanes and spacecraft, such as seats, interiors, portholes, etc.
Toy Industry: Injection Molding is one of the common processes used in the production of toys, which can be manufactured in a variety of shapes and sizes.
Injection Molding Process
The process of Injection Molding usually consists of the following major steps:
- Mold Design: First, the design of the mold is based on the design requirements and specifications of the final product. Mold design needs to take into account factors such as the shape, size, and surface quality of the product, and ensure that the mold can achieve an accurate reproduction of the product.
- Material Preparation: Plastic pellets or granules are loaded into the hopper of the injection molding machine. Choosing the right plastic material is critical to the quality and performance of the product.
- Heating and Melting: The plastic raw material is heated and melted in the heated barrel of the injection molding machine until it becomes molten plastic in an injectable state.
- Injection: The molten plastic is injected into the cavities of the mold, filling all parts of the mold. Injection pressure and speed need to be precisely controlled to ensure complete filling of the plastic and to avoid air bubbles and defects.
- Cooling and Solidification: The plastic is cooled and solidified in the mold until it is formed. The cooling time depends on factors such as the type of plastic, product thickness and mold design.
- Mold Opening and Ejection: After molding, the mold is opened and the molded plastic product is ejected from the mold. Usually an ejector rod or pneumatic ejection system is used to assist in the ejection process.
- Post-processing: Depending on the requirements of the product, post-processing operations, such as trimming, deburring, painting, etc., may be required to improve the surface quality and accuracy of the product.
- Inspection and Quality Control: The final product needs to be inspected and quality controlled to ensure compliance with design requirements and standards. Commonly used inspection methods include appearance inspection, size measurement, function test, etc.
- Repeat Production: After completing one round of injection molding, the injection molding machine can restart a new round of production cycle to achieve continuous production.
Hot runner system and cold runner system
Hot runner systems and cold runners are two different types of runner systems used in injection molding:
Hot runner system:
In a hot runner system, the channels that carry the molten plastic from the injection molding machine to the mold cavities are heated.
The heated channels help keep the plastic in a molten state, reducing cycle time and material waste by preventing the plastic from solidifying prematurely.
Hot runner systems are typically used for high volume production and molded parts with complex geometries.
They offer the benefits of better part quality, reduced material waste, and shorter cycle times than cold runner systems.
However, hot runner systems are typically more expensive to purchase and maintain.
Cold Runner:
In a cold runner system, the channels that carry the molten plastic are not heated and the plastic in those channels cures between cycles.
During each cycle, the cured plastic in the runner system is ejected with the part, resulting in wasted material.
Cold runner systems are simpler and less expensive than hot runner systems, making them suitable for low volume production runs or parts where material waste is not a significant issue.
However, cold runner systems can result in longer cycle times and lower part quality than hot runner systems, especially for parts with complex geometries.

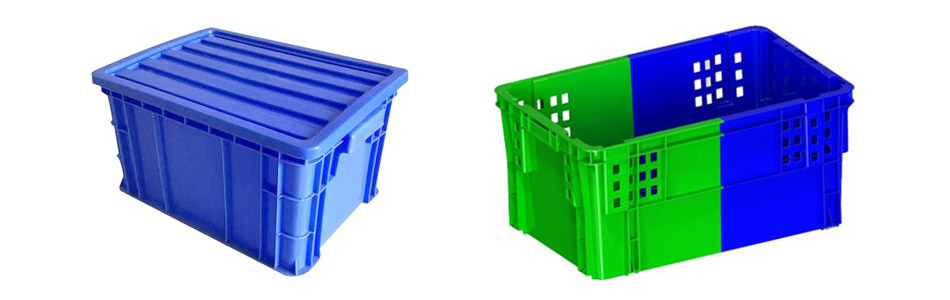

Single Color & Multi-Color Injection Molding
Single color and multi-color injection molding are two variations of the injection molding process used to produce plastic parts with different aesthetic designs and color patterns.
- Single Color Injection Molding:
- In single color injection molding, a single color of molten plastic material is injected into the mold cavity to form the desired part.
- The entire part is molded from one color of plastic resin, resulting in a uniform appearance throughout the part.
- Single color injection molding is commonly used for parts that do not require complex color patterns or variations.
- Multi-Color Injection Molding:
- Multi-color injection molding, also known as two-shot or multi-shot molding, allows for the production of parts with multiple colors or materials in a single molding cycle.
- This process involves injecting two or more different colors of molten plastic material into the mold cavity sequentially or simultaneously.
- The mold cavity is typically designed with multiple cavities or core inserts to accommodate the different colors or materials.
- Multi-color injection molding enables the creation of parts with intricate color patterns, gradients, or overmolded designs.
- It offers design flexibility and can reduce the need for secondary assembly or painting operations.
Advantages of Multi-Color Injection Molding:
- Enhanced aesthetics: Multi-color injection molding allows for the creation of visually appealing parts with complex color patterns and designs.
- Improved part functionality: Different colors or materials can be used strategically to enhance the functionality or performance of the part.
- Cost and time savings: By integrating multiple colors or materials into a single molding cycle, multi-color injection molding can reduce the need for additional assembly steps, saving time and costs.
Applications:
- Consumer products: Multi-color injection molding is commonly used in the production of consumer goods such as mobile phone cases, toys, and cosmetic packaging.
- Automotive: Automotive interior components, such as instrument panels and door panels, often utilize multi-color injection molding for decorative trim and branding.
- Medical devices: Multi-color injection molding can be employed to produce medical devices with color-coded features or ergonomic grips for improved usability.
Injection Molding Advantages
Injection Molding is an efficient, accurate, flexible and cost-effective manufacturing method for production needs of all sizes and complexities.
- High Efficiency: Injection Molding allows for high speed, continuous production of a large number of parts per cycle, resulting in increased productivity.
- High Accuracy: Through sophisticated mold design and control systems, Injection Molding can produce parts with high accuracy and complex geometries.
- Low Cost: When manufacturing large quantities, the cost per part is relatively low because the fixed cost per cycle can be spread over a larger number of parts.
- Wide choice of materials: Injection Molding is available in a wide range of plastic and metal materials to meet different product requirements.
- Fast Production Cycles: Once the mold is ready, Injection Molding can start production quickly and deliver large quantities of parts in a short period of time.
- Design Flexibility: Injection Molding can be flexibly adapted and modified to meet product design requirements, making design changes relatively easy and economical.
- Reduced Scrap: Injection Molding produces less scrap because the raw material can be maximized by optimizing the mold design and production parameters.
- Good Surface Quality: The surface of Injection Molding parts is smooth and consistent, requiring no additional surface treatment and can be used directly in the final product.
Injection Molding Drawbacks
- High initial investment cost: The equipment and molds required to set up an Injection Molding line are expensive to purchase and install.
- Long cycle time for mold manufacturing: It usually takes a long time to manufacture complex molds, which may prolong the time-to-market and increase the product development cycle.
- Limited to high volume production: Injection Molding is suitable for mass production, but may be less economical for low volume or customized production.
- Not suitable for all materials: Some specialty materials may not be suitable for Injection Molding or may require special handling and processes.
- Limited Design Flexibility: Once the mold is built, modifications and adjustments to the design can be difficult and expensive.
- Long Production Cycles: Although Injection Molding allows for quick start-up of high volume production, the relatively long production time for each cycle can affect product delivery times.
- Waste Disposal: Waste materials generated during the Injection Molding process need to be disposed of and recycled, which can increase production costs and environmental impact.
- Complex process control: Controlling the temperature, pressure, speed and other parameters of the Injection Molding process requires a high degree of skill and experience, and improper control can lead to inconsistent part quality or production failures.
New Technologies and Materials in Injection Molding
In Injection Molding, the application of new technologies and materials continues to drive the development and advancement of the manufacturing process, resulting in more flexible and diverse product designs, higher production efficiency, and superior product performance. The following are some of the new technologies and materials used in Injection Molding:
3D Printing Assistance: Complex injection molds can be manufactured using 3D printing technology. These molds can have internal complex structures or customized geometries, increasing product design freedom and productivity.
Gas-assisted injection molding: Gas-assisted injection molding is a technique that involves injecting gas into the molding process to reduce the amount of material used, lower costs and improve product quality. It reduces defects such as warpage, bubbles and shrinkage, and improves product strength and surface quality.
Multi-material injection molding: Multi-material injection molding technology allows different types of materials to be used in the same product, resulting in more diverse functions and properties. For example, in automotive parts, hard plastics and soft rubber can be combined to achieve better sealing performance.
Biodegradable Materials: As environmental awareness grows, biodegradable materials are becoming more widely used in Injection Molding. These materials can be degraded into environmentally friendly substances, reducing pollution to the environment.
Nanomaterial Enhancement: By adding nano-scale fillers (e.g. nanoparticles, nanotubes, etc.) to injection molding materials, the mechanical properties, thermal conductivity, flame retardancy, etc. of the materials can be improved, and the performance and quality of the products can be enhanced.
Intelligent injection molding machine: Intelligent injection molding machine is equipped with advanced sensors, control systems and data analysis functions, which can realize real-time monitoring, optimization and automation of the injection molding process, and improve production efficiency and product quality.
Bionic Design: Bionic design principles are applied to the appearance and structural design of products, making them more ergonomic and improving comfort and experience.
Sustainability and Environmental Measures at Injection Molding
Injection Molding, a commonly used plastics processing technology, is facing increasing pressure for environmental protection and sustainable development. In order to minimize its impact on the environment and promote sustainable development, manufacturers have adopted a range of environmental measures and innovative approaches.
Common Sustainability and Environmental Measures for Injection Molding:
Material Selection: Choosing biodegradable, bio-based plastics or recycled materials as raw materials reduces dependence on finite resources and minimizes adverse environmental impact.
Energy Efficiency: Optimize production processes, adopt energy efficient equipment and energy saving technologies to reduce energy consumption and carbon emissions.
Recycling and recovery: Promote the recycling and reuse of plastic waste, reduce the demand for virgin resources by recycling waste, and reduce environmental pollution.
Waste Reduction: Minimize waste and by-products by optimizing product design, mold design, and production processes to improve resource utilization and production efficiency.
Reduce Volatile Organic Compounds (VOCs): Reduce VOC emissions and improve air quality through the use of low volatile materials, closed production environments, and effective emission control technologies.
Life Cycle Assessment (LCA): Conduct a comprehensive life cycle assessment (LCA) of the Injection Molding production process, from raw material collection, manufacturing, use phase to disposal, to assess its environmental, economic and social impacts, and provide data support and decision-making reference for sustainable development.
Product Design Optimization: Adopt the concept of designing recyclable, detachable and reusable products to extend the service life of products, reduce the generation of waste and promote the development of circular economy.
Environmental certification and standards: Comply with and apply for environmental certification standards, such as ISO 14001 environmental management system certification, to ensure that the production process meets the requirements of environmental regulations and standards.
Market Outlook and Trends of Injection Molding Industry
The Injection Molding manufacturing industry plays an important role in today’s global manufacturing industry and shows promise for continued growth.
Stable Growth: The Injection Molding industry is benefiting from the continued growth and demand for innovation in the global manufacturing industry, resulting in a relatively stable growth trend. In particular, the demand for Injection Molding in the automotive, medical, electronics and consumer goods industries continues to grow.
Technological Innovation: With the advancement of technology and digital transformation, the projection molding industry is also advancing technological innovations such as smart manufacturing, digital design, and simulation technologies to improve production efficiency and product quality.
Sustainability: Environmental protection and sustainability have become one of the key trends in the Injection Molding industry. Manufacturers are increasingly focusing on adopting eco-friendly materials, energy-saving equipment and recycling technologies to reduce environmental impact and enhance corporate image.
Demand for Customization: Increasing consumer demand for personalized and customized products is driving the Injection Molding industry towards flexible production and small batch customization to provide a wider variety of product options.
Global Competition: Global competition has intensified competitive pressures in the Injection Molding industry, requiring manufacturers to continuously improve product quality, reduce costs, and respond flexibly to changes in the marketplace in order to maintain a competitive edge.
Additive Manufacturing: With the development and maturity of 3D printing technology, additive manufacturing is becoming an important addition to the Injection Molding industry, especially in rapid prototyping, small batch production and customized production.
Emerging Markets: Demand for Injection Molding products is growing in emerging markets, especially in Asia, where rapid industrialization and urbanization will bring more opportunities and challenges to the Injection Molding industry.
Common Problems and Solutions for Injection Molding
how much does injection molding cost？
The cost of injection molding can vary greatly depending on a variety of factors, such as the complexity of the part, the type of material used, the volume of production, and quality requirements. A small, simple single-cavity plastic injection mold typically costs between $400 and $3,000. Very large or complex molds can cost up to $50,000 or more.
