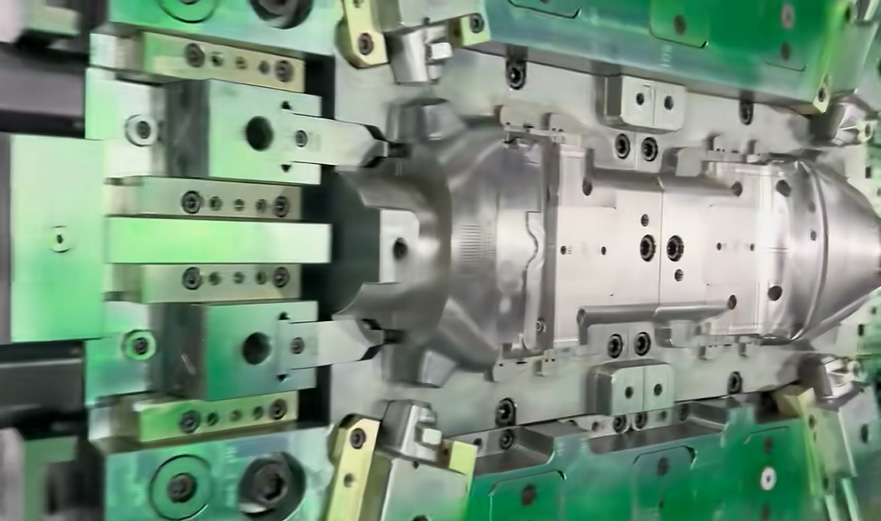

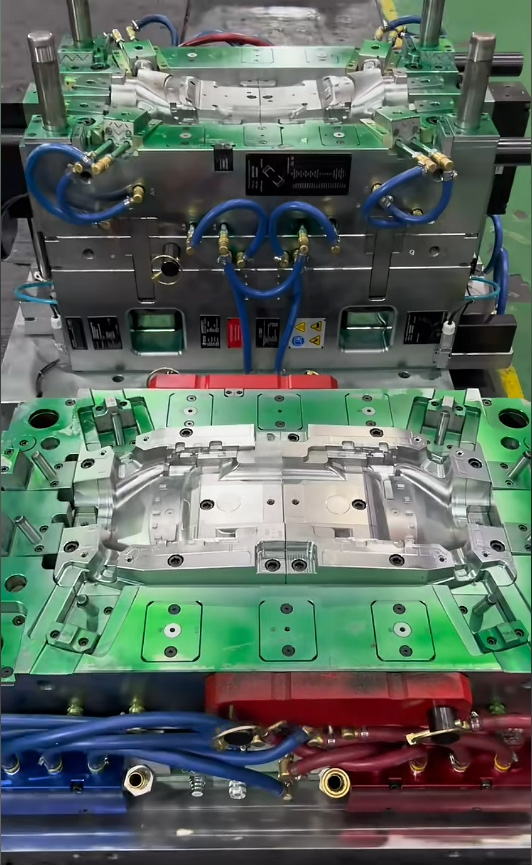

An Automotive Center Console Panel Injection Mold is a core production asset for interior trim programs where appearance, fit, and long-term stability directly impact vehicle quality perception. Our Injection Molding & Tooling services are built for engineers and sourcing managers who require predictable performance, disciplined cost control, and tooling that supports high-volume automotive production from SOP through end of life.
Product Overview
The center console panel sits at the visual and functional center of the vehicle interior. Consequently, its mold must deliver consistent surface texture, accurate geometry, and stable cycle times over extended production runs. Our automotive console panel mold solutions are engineered to support complex geometries, integrated clips, hidden ribs, and cosmetic Class A or Class B surfaces.
We support a wide range of thermoplastics commonly used in automotive interior panel molding, including ABS, PC/ABS blends, PP, and mineral-filled materials. Notably, our team focuses on aligning part design intent with mold structure early, reducing downstream modifications and avoiding launch delays. As a console panel mold manufacturer, we prioritize robustness, serviceability, and repeatable output rather than short-term sampling success.
Pain Points
Automotive interior programs frequently face challenges during center console panel injection molding projects. Common issues include warpage caused by uneven cooling, sink marks near structural ribs, visible weld lines on cosmetic surfaces, and inconsistent grain reproduction between shots. Therefore, even minor tooling oversights can result in costly rework or quality claims.
From a sourcing perspective, uncertainty around mold life, maintenance frequency, and actual production capability is another concern. In our experience, molds built without sufficient consideration for resin behavior or cycle stress may pass initial trials but fail to maintain dimensional stability over time. Consequently, total lifecycle cost increases despite a lower upfront quotation.
Our Solutions
Our solution starts with OEM-grade DFM analysis focused on real production conditions. Wall thickness transitions, rib layouts, draft angles, and parting line locations are reviewed in detail. We recommend design adjustments where necessary to improve flow balance and cosmetic consistency without compromising functional requirements.
For each injection molded console panel project, we engineer optimized gating strategies to minimize shear and avoid cosmetic defects. Cooling systems are designed for uniform heat extraction, which is critical for reducing internal stress and preventing deformation. In addition, steel selection and surface treatments are matched to resin type and expected annual volume, ensuring predictable mold performance throughout its service life.
Manufacturing Capabilities

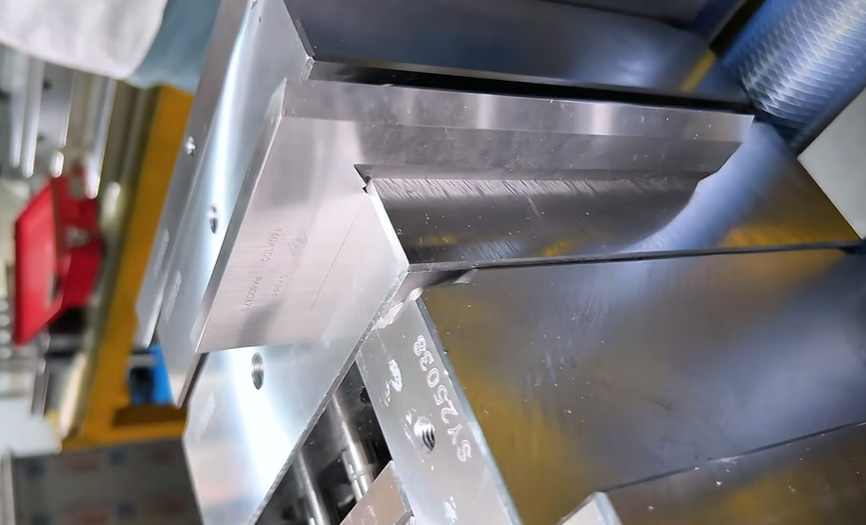

Our tooling workshop is equipped for precision manufacturing of complex console panel tooling. Capabilities include high-speed CNC machining, EDM for intricate details, precision grinding, and controlled polishing for textured or high-gloss surfaces. As a console panel tooling supplier, we support both single-cavity and multi-cavity molds depending on volume strategy and press availability.
Injection Molding & Tooling validation includes internal trial runs, parameter optimization, and dimensional verification. Notably, molds are tested with production-intent materials to confirm cycle stability and surface appearance before delivery. This approach reduces on-site adjustments and supports faster ramp-up at the customer’s facility.
Industries Served
Our primary focus is automotive interior trim, including passenger vehicles, SUVs, commercial vehicles, and electric vehicle platforms. Center console components often evolve with new infotainment layouts and storage concepts, therefore adaptable tooling strategies are essential.
In addition to automotive applications, our experience with automotive interior panel molding extends to other industries requiring high-appearance plastic parts, such as mobility equipment, industrial controls, and consumer electronics enclosures. The same principles of flow control, surface consistency, and dimensional accuracy apply.
Technical Specifications
Mold type: Injection mold for automotive center console panels
Mold steel options: P20, 718, H13, or equivalent with appropriate heat treatment
Expected mold life: 300,000 to over 1,000,000 cycles depending on configuration
Production Flow
The production flow begins with requirement confirmation and technical review. After DFM approval, detailed mold design is released for manufacturing. Machining, heat treatment, assembly, and polishing are completed under controlled processes. Trial molding is then conducted to validate dimensional accuracy, surface quality, and cycle performance.
Consequently, when the automotive console panel mold is delivered, it is production-ready and aligned with agreed specifications. In our experience, this structured approach reduces corrective actions during launch and supports stable long-term production.
Internal Links
Additional technical resources and related tooling capabilities are available through our internal pages to support sourcing evaluation, engineering comparison, and project planning.
Call to Action
If you are planning a new interior program or reviewing an existing center console panel injection molding supplier, we recommend engaging our team early. Share your drawings, material requirements, and target volumes, and we will provide a technical assessment and quotation aligned with your production objectives.
FAQ
What makes a center console panel mold more complex than other interior parts?
Center console panels combine high cosmetic requirements with structural features and tight fit conditions, therefore tooling design must carefully balance flow, cooling, and surface control.
Can you support design changes after initial tooling?
Yes. We support controlled engineering changes and mold modifications when design updates are required during development or lifecycle updates.
What production volumes are best suited?
Our injection molding & tooling solutions are suited for medium to high-volume automotive programs, including long-running platforms.
Do you provide sampling and validation reports?
Yes. Trial samples, dimensional reports, and process validation data are provided as part of our standard delivery.
